Knowledgeable IOTA ISL-54 Emergency Backup Ballast for Linear LED Retrofit (TLED) and Fluorescent Luminaires - Slim Profile

The ISL54 Fluorescent Emergency Ballast allows the same fixture to be used for both normal and emergency operation. In the event of a power failure, the ISL54 switches to the emergency mode and operates one of the existing lamps for 90 minutes. The unit contains a battery, charger, and inverter circuit in a single can. The ISL54 delivers high performance in a slim design and is ideal for use in linear lighting fixtures where ballast compartment space is limited.

Initial Lumen Output

• 825 Lumens

Lamps Operated

• Select LED Retrofit Tubes
• (1) 2-4ft. 14W-54W T5
• (1) 2-4ft. 17W-40W T8, including HO
• (1) 36W-55W Biax

Features

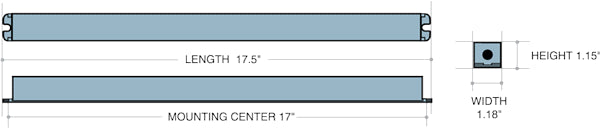

• Slim profile design is ideal for smaller ballast compartments
• AC output for compatibility with low-mercury content amalgam lamps
• Time delay feature for compatibility with end-of-lamp-life circuitry
• Open circuit isolation protects unit when load is absent
• Long life high temperature recyclable Ni-Cad battery
• Galvanized steel case
• Includes test switch and charge indicator accessory kit
• For use with switched and unswitched fixtures
• Suitable for use in damp locations, plenum, and enclosed and gasketed fixtures
• Meets or exceeds all National Electric Code and Life Safety Code Emergency Lighting Requirements
• RoHS Compliant
